Obd Locator Gps Locator English Version

Product information:
OBD locator product features
1. Precise positioning with an accuracy of 5 meters.
2. GPS+Beidou+LBS three-mode positioning.
3. Three-proof design: waterproof, dustproof and drop-proof.
4. Functions: overspeed alarm, vibration alarm, displacement alarm
Communication characteristics:
Communication module brand/chip model: MT6261D
Communication frequency band: support 2G: 850/900/1 800/1900MHz
SIM card: standard SIM card
Communication antenna: built-in antenna
Cold start time: 32 seconds on average
Hot start time: 1 second on average
Sensitivity: -162DBM
Positioning antenna: built-in antenna
Specifications
Working current: <45mA@12V
Standby current: <5mA@12V
Positioning method: Beidou/GPS dual satellite positioning
Positioning accuracy: 5-10 meters

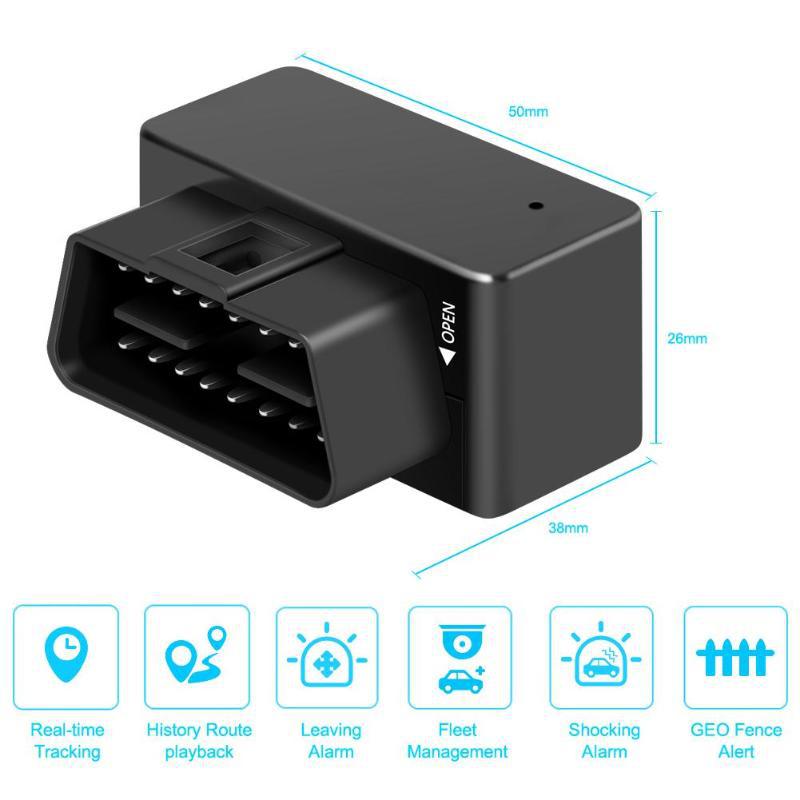

Dimensions: 50*26*38mm
Working temperature: -20℃~75℃
Working humidity: 5%~95%

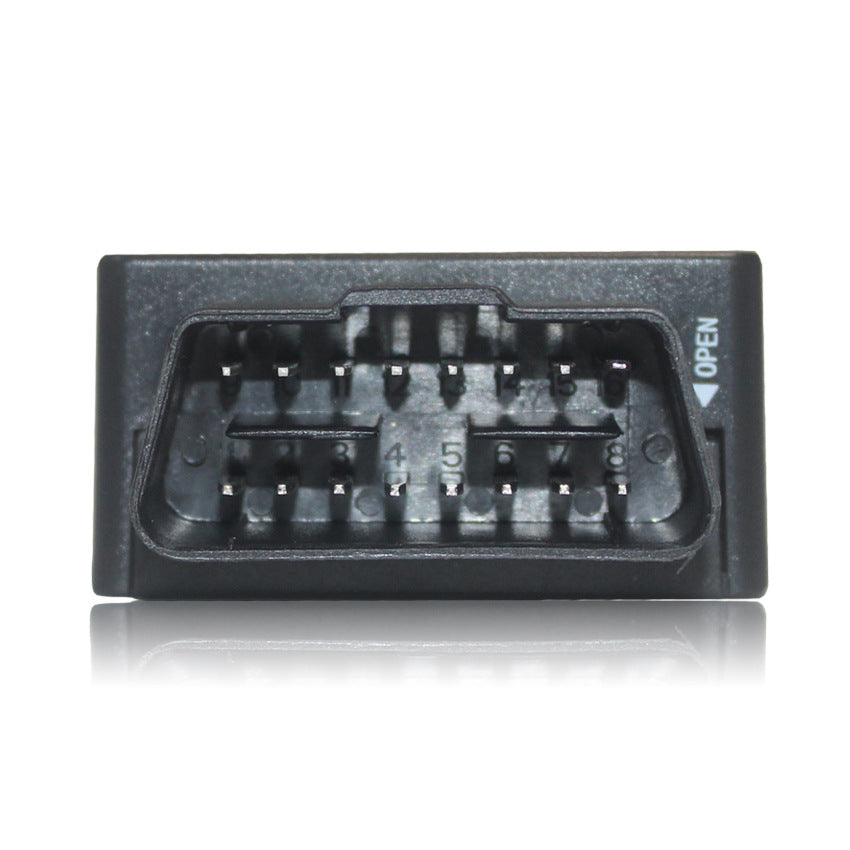

Interface: 16PIN standard OBDII interface
SIM card: Support 1.8V/3.0V Micro SIM

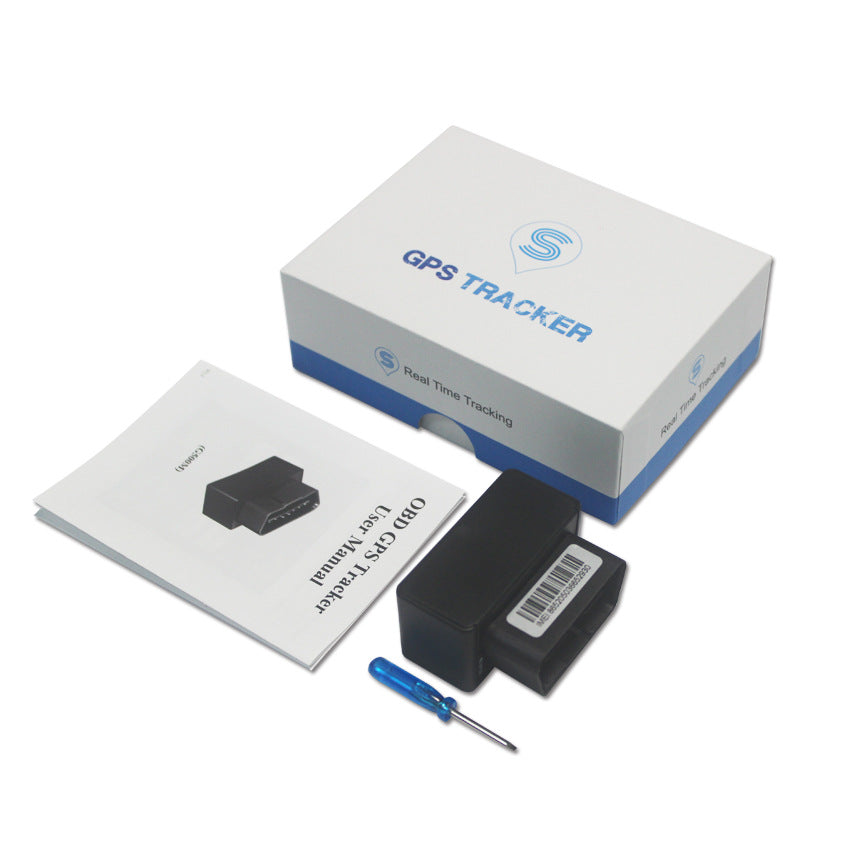

Packing list:
OBD type positioner x1 manual x1
